Fw 190 / Ta 152
Replacement Propeller Assemblies and Blade Fans





Cutting Edge





S u m m a r y

Catalogue Number, Scale and Price: CEC48350 - 1/48 scale Ta 152 Corrected Spinner & VS-9 "Pointed Tip" propeller blades USD$7.99
CEC48350 - 1/48 scale Ta 152 Corrected Spinner & VS-9 "Rounded Tip" propeller blades USD$7.99
CEC48353 - 1/48 scale Fw 190A/F VDM9-16176A Metal Prop Blades & Corrected Spinner USD$7.99
CEC48354 - 1/48 scale Fw 190A/F VDM9-12157H3 Wide Chord Wooden Prop Blades & Corrected Spinner USD$7.99
CEC48356 - 1/48 scale Fw 190A-9/F-9 14 Blade Fans USD$5.99
Contents and Media: 4 x Pieces in resin in each set (except Blade Fans - 2 x pieces)
Review Type: FirstLook
Advantages: Handy corrections and/or conversions; thoughtfully minimal casting blocks; perfectly cast; clever engineering
Disadvantages:
Recommendation: Recommended



Reviewed by Brett Green


HyperScale is proudly sponsored by Meteor Productions



FirstLook



Cutting Edge has added five new releases to correct and convert 1/48 scale Fw 190A, F and G kits.

They are:

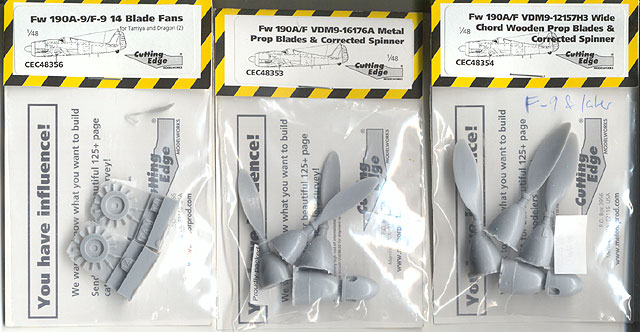

  • CEC48350 - 1/48 scale Ta 152 Corrected Spinner & VS-9 "Pointed Tip" propeller blades @ USD$7.99

  • CEC48350 - 1/48 scale Ta 152 Corrected Spinner & VS-9 "Rounded Tip" propeller blades @ USD$7.99

  • CEC48353 - 1/48 scale Fw 190A/F VDM9-16176A Metal Prop Blades & Corrected Spinner @ USD$7.99

  • CEC48354 - 1/48 scale Fw 190A/F VDM9-12157H3 Wide Chord Wooden Prop Blades & Corrected Spinner @ USD$7.99

  • CEC48356 - 1/48 scale Fw 190A-9/F-9 14 Blade Fans @ USD$5.99

Until now, if a modeller wanted to build a late-war Fw 190A-9 or F-9, he would have to raid another kit or resort to scratchbuilding. Cutting Edge has simplified the task by offering the two most common items required for these late Wurgers - the broad chord wooden propeller blades and the 14 blade cooling fan. These are simple replacements for the plastic kit parts, and are applicable to both the Tamiya and Dragon kits.

Cutting Edge are also offering a corrected spinner and new standard metal VDM-9 propeller blades for the Fw 190A and F. These are also applicable to the Fw 190G.

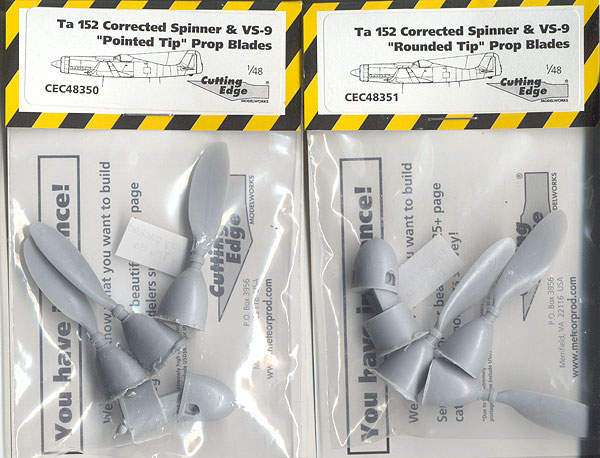

The final items in this batch are two alternate styles of propeller for the Trimaster/Dragon/Italeri 1/48 scale Ta 152H. "Pointed tip" and rounded tip" blades are both available. A corrected spinner is supplied with each set.





The casting is up to the usual standard, and casting blocks are not too frightening. Special thought has obviously been put into the location and size of the blocks on the spinners. A few minutes of careful attention with a razor saw will free these parts without too much trouble. The spinners themselves are each cast in a single piece incorporating the baseplate, internal hub and spinner cap. Shallow locating circles are recessed into the hub. These should be fairly secure if the modeller leaves a millimetre on the ends of the propeller blade mounts when they are removed from their casting blocks. For extra strength, I would recommend drilling the propeller blades and the locating holes, and adding a short length of wire reinforcement.

The profile of the blades and spinners look very accurate.

Wurger fanciers will appreciate these new accessories from Cutting Edge.

Recommended.

Click the thumbnails below to view larger images:

Thanks to Meteor Productions for the review sample


Cutting Edge Modelworks Resin accessories are available at Meteor Productions Website


Review and Image Copyright 2002 by Brett Green
